The blog (and myself) has been dormant a while - I’ve been literally working my *** off (doing over 600 hours in just two months isn’t too healthy) and have rewarded myself by travelling the US for three weeks. However, I’m back in Switzerland now and will try to reply to pending posts and questions asap (read: once I get rid of my current sleep deprivation), along with an update on Sketchables.
I wanted to officially release Sketchables weeks ago, but business just got in the way – and it turned out that my plan to just working at night / on weekends didn’t work either because, well, business got in the way there, too.
However, my deadline ends in little more than a week (and I’ll have quite some time at my hands in August), so I’ll be able to finally package Sketchables, record some more videos, and of course add a few goodies. For now, I’ve prepared a preview release of the package which already works quite solid:

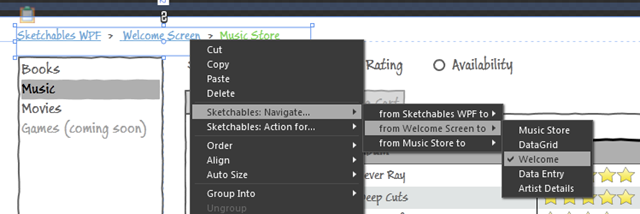

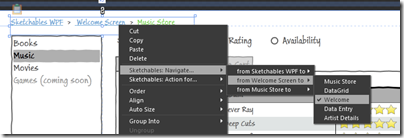

If you compare this package to the contents in the YouTube video, the most prominent addition is built-in navigation support which gives you point-and-click navigation, and allows you to trigger other actions for a Sketchable’s items:
(Click on screenshot to show in full size)
As always, critical feedback is appreciated – happy sketching!
SketchFlow is a great addition to Blend, but I was missing the ability to create quick mockups of user interfaces. I’m a huge fan of productivity tools such as Balsamiq, and I was sorely missing its ease and speed in SketchFlow.

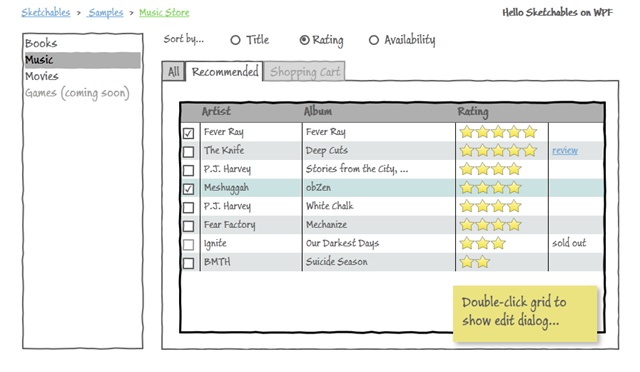

Meet Sketchables. Sketchables is a simple framework complemented by a set of controls that allow you to quickly create common controls in a matter of seconds. Here’s a screenshot from one of the samples, which was created in just a few minutes:
…and here’s a complementary recording that shows how the above mockup was created:
Sketchables will be free software, requires Blend 4 RTM and fully supports both WPF and Silverlight SketchFlow projects. Version 1.0 is approaching completion, so I hope I’ll be able to release it as soon as Blend 4 goes live.
Still time for you to slip in some last-minute feature requests though
Up until now, I’ve dealt with temporary data in my .NET applications using local files and FileInfo instances. This worked just fine – until I needed a solution that works under both .NET and Silverlight.
The problem: In Silverlight, you can’t just create a temporary file on the file system for security reasons. Instead, there’s the concept of isolated storage that provides you with the means to store data in files and directories. The API is very similar to working with the local file system, but it doesn’t use the FileInfo class. As a result, I needed to get rid of the (proprietary) concept of FileInfo in my temporary file handling and came up with a simple yet generic solution.
Here’s a sample usage of the API. This code transparently creates temporary storage, and works in both .NET and Silverlight:
private void Foo(ITempStreamFactory factory) { using (Stream stream = factory.CreateTempStream()) { //write to the stream, read from it } //once we get outside the "using" block, temporary data has been discarded }
The snippet above relies on a factory of type ITempStreamFactory that returns a simple Stream instance. I do not need to know anything about this returned stream – it’s the factory’s responsibility to return a Stream instance that will clean up after itself once it is being disposed.
Unlike the .NET platform, Silverlight only provides two text encodings out of the box: UTF-8 (UTF8Encoding class) and UTF-16 (UnicodeEncoding class).
Accordingly, if you find yourself in a situation where you need to encode or decode data with another encoding (e.g. iso-8859-1), you’ll have to write your own Encoding class (or delegate the work to a server-side service).
I found myself in this exact situation yesterday, and came up with a little tool which automates the process. The Encoding Generator is a WPF application which takes the name or code page of a well known encoding, and generates source code for a custom Encoding class which compiles under Silverlight.
Current version: 1.0.0, 2010.03.31, requires .NET 3.5 SP1 or higher
(You can subscribe to the RSS feed or follow me on Twitter in order to get notified about updates and bug fixes)

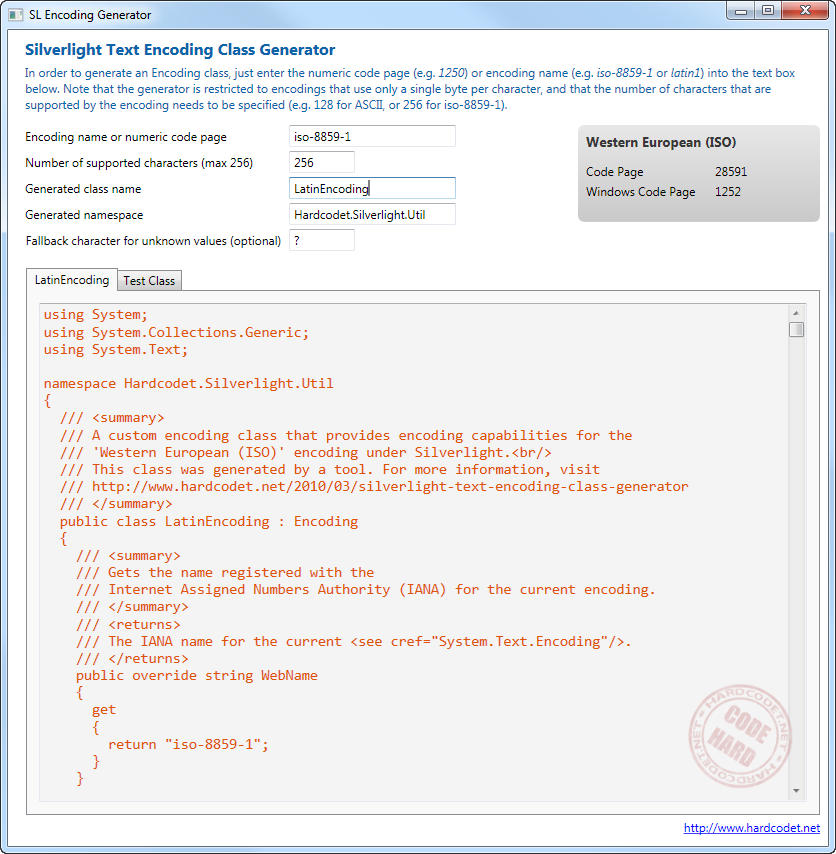

In order to specify the encoding you want to use, you can either enter the name or numeric code page of a well-known encoding. As soon as you enter a valid value, some information for the encoding is being displayed in the right hand border you can see on the screenshot.
As a sample for valid encoding names or code pages, here’s some values you can enter in order to tell the tool to generate an iso-8859-1 encoder (see screenshot):
The tool gives you the option to specify a fallback character value, which is used as a default in case a character or byte value is being processed during encoding/decoding. In case you don’t specify the character, the encoding class will crash at runtime should it receive data that cannot be properly encoded or decoded.
The generated class only works if a single byte can be translated into a single character and vice versa. Accordingly, if you try to generate code for an encoding that uses several bytes per (e.g. utf-8) character, the generator shows an error message.
You need to specify the byte range of the encoding. For example, ASCII supports only 128 characters, and therefore has a byte range of 128 bytes. Most other encodings support a byte range of 256 bytes, though. 256 is the maximum value that can be specified, as a single byte cannot deliver more values (the byte data type covers a numeric range from 0 – 255).
The generator also creates an NUnit test class that compares the results of the generated class against the original encoding. Accordingly, this test class is supposed to run in a regular .NET environment, not in Silverlight (if the original encoding that is used in the test was available in SL, you wouldn’t have to generate a custom encoding class in the first place…).
At runtime, the following is happening: Basically, the generator maintains mapping tables to do the encoding and decoding from characters to bytes and vice versa. Fore every request, it just looks up the translation tables for every supported character/byte value of the encoding.
The generator creates these translation tables on the fly in the form of a static array and dictionary.
The library doesn’t contain any performance tweaks and performs much slower than the built-in encodings that rely on all sorts of black magic. However, as long as you don’t have to encode or decode huge amounts of data, this shouldn’t be noticeable.
Here’s the results from my machine for 10000 iterations:
WPF wizard and fellow WPF Disciple Josh Smith published an article yesterday that showed how to control input focus from View Model objects using attached properties and a custom binding extension. Prior to the article, there was a discussion in the Disciples group, during which I looked into using Blend behaviors as an alternative configuration approach to Josh’s markup extension – this article here discusses this approach.
Accordingly, this posting is not about controlling input focus. Josh did all the legwork there, and you should check out the article on his blog. Everything that goes beyond the Behavior classes is Josh’s work, not mine - I merely discuss a different approach regarding the declaration of focus control on the UI using Blend Behaviors.
Download Source Code and Sample Application
Let’s start by looking at the difference from a developer’s point of view. Assume you have a simple TextBox control that is bound to a FirstName property on the View Model:
<!-- simple textbox --> <TextBox Text="{Binding FirstName}" />
Josh’s approach using a markup extension is a very lean way to wire up your control with the focus controller. If you’re used to coding in XAML, this is pretty much the quickest way to get things running. Note that only the Binding keyword was replaced by a the custom FocusBinding markup extension:
<!-- simple textbox --> <TextBox Text="{jas:FocusBinding FirstName}" />
If you’re working in Visual Studio, this is the way to go (even more so if you have ReSharper to take care of the namespace declarations for you). It might become tedious, however, if’ you’re working in a Blend environment: For one thing, there’s the namespace declarations. And then, you can no longer wire up your bindings directly in Blend on the designer surface.
The Blend Behaviors don’t require you to write any XAML at all. The data binding itself remains unchanged, and the TextBoxFocusBehavior was just dragged/dropped on the TextBox in Blend. Accordingly, you can set up both binding and input focus control with a few mouse clicks without having to leave the designer surface:
If you look at XAML source, you’ll notice that the Behavior above actually produces substantially more markup – this isn’t something you’d want to type in manually:
<TextBox Text="{Binding FirstName}" > <i:Interaction.Behaviors> <FocusVMLib_Behaviors:TextBoxFocusBehavior/> </i:Interaction.Behaviors> </TextBox>
In order to compare the two approaches, just download the attached sample and have a look at the two Window classes. Window1 is the original implementation (using the markup extension), Window2 uses the Blend behaviors. The end result is the same – the only difference is the different declaration approaches.
The rest of this blog post discusses the implementation of the behavior classes, and suggests an approach to support different control types.
